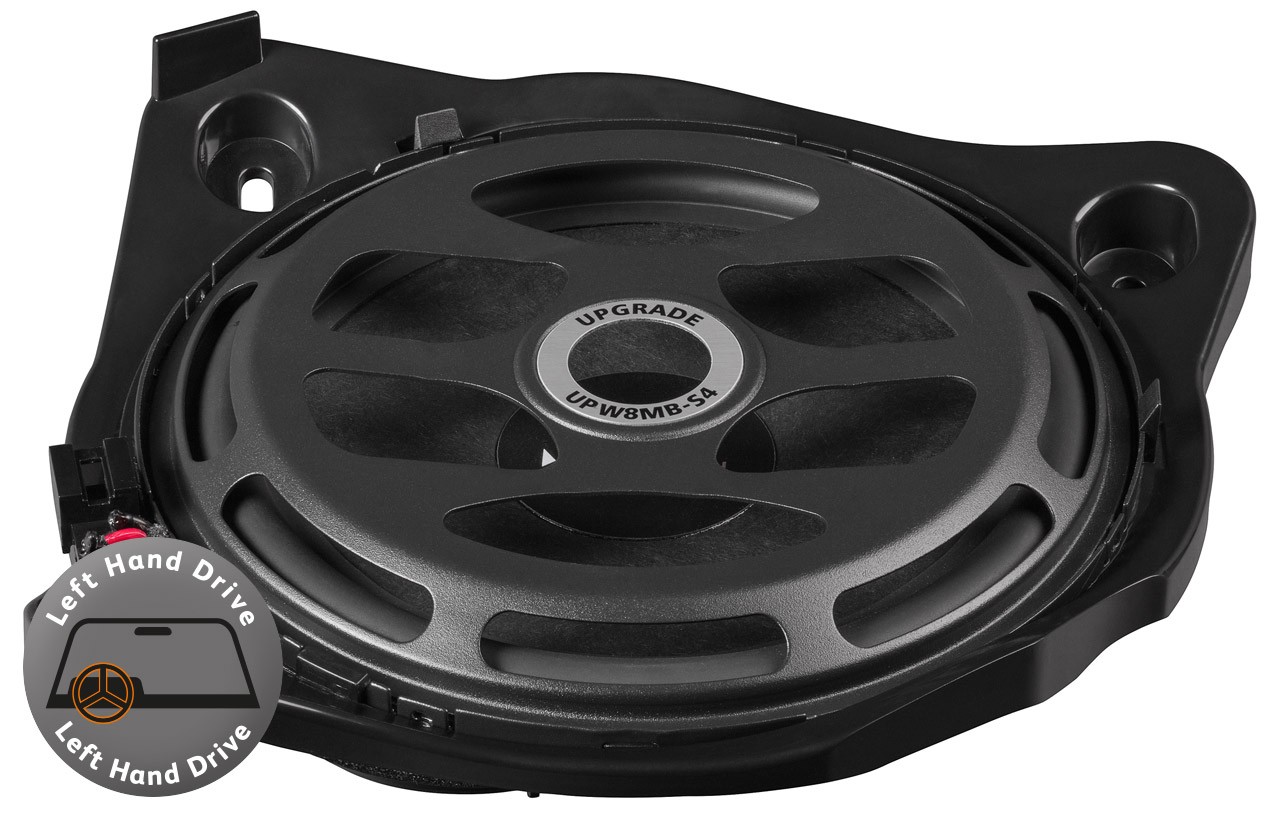

MATCH UP W8MB S4 SINGLE LHD 20CM SUBWOOFER
The MATCH UP W8MB-S4 LHD system is designed to deliver deep, punchy bass for premium Mercedes vehicles, addressing the shortcomings of standard factory speaker setups. These 8-inch (200 mm) woofers fit perfectly into the original bulkhead mounting positions, providing dynamic, high-impact sound that brings your music to life.
Overview
Product details
The MATCH UP W8MB-S4 LHD system is designed to deliver deep, punchy bass for premium Mercedes vehicles, addressing the shortcomings of standard factory speaker setups. These 8-inch (200 mm) woofers fit perfectly into the original bulkhead mounting positions, providing dynamic, high-impact sound that brings your music to life.
Read full product description

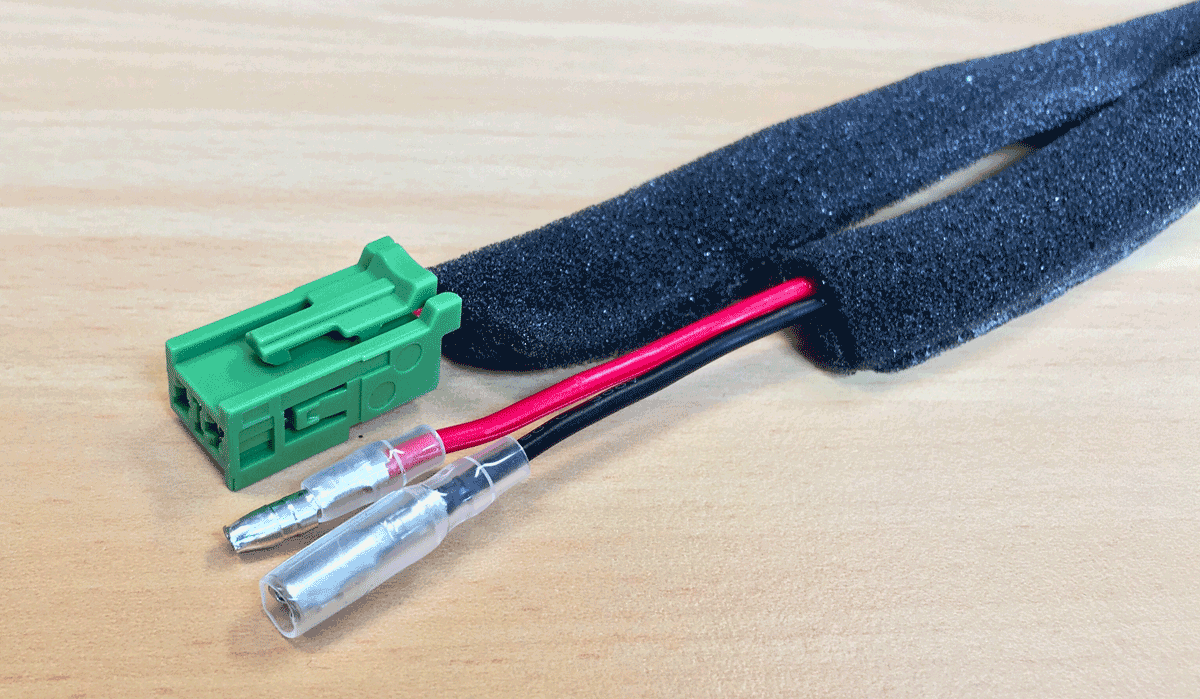

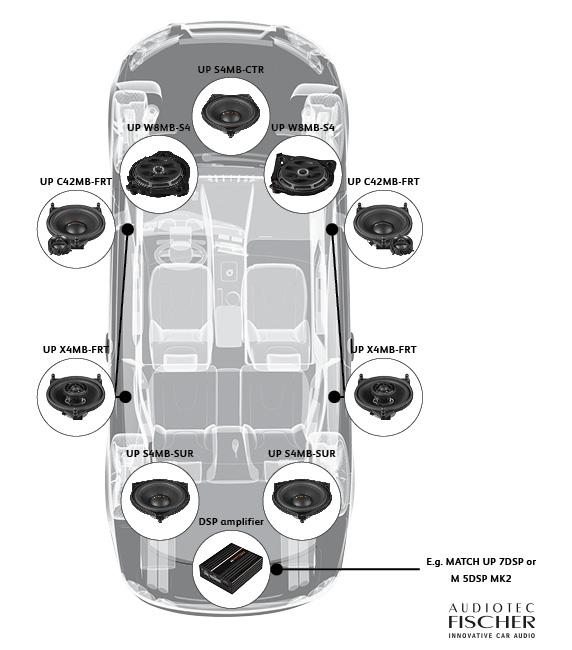

Optimized sound characteristics specifically for Mercedes vehicles Significantly increased power handling for premium performance Custom-designed baskets and vehicle-specific connectors for easy installation Perfectly combinable with other MATCH UPGRADE components (e.g., DSP amplifiers) Left-hand drive (LHD) version Technical data available below.
Product context
Subwoofers products are easier to compare with the right specs.
Use the product name, SKU, category, brand, images, price and spec sections to compare this item against the rest of the catalogue. Product pages are designed to make online shopping easier before an order is placed.
Technical specs
Product spec sections
Old site attributes1 spec
- Amplifier impedance
- 4 Ohm
Technical specs23 specs
- Power RMS / Max
- 100 / 200 Watts
- Impedance
- 1 x 4 Ω
- DC Resistance (Re)
- 3.6 Ω
- Frequency Response
- 25 - 250 Hz
- Resonance Frequency (Fs)
- 51 Hz
- Mechanical Q Factor (Qms)
- 7.24
- Electrical Q Factor (Qes)
- 0.71
- Total Q Factor (Qts)
- 0.64
- Compliance (Cms)
- 276 µm/N
- Equivalent Air Volume (Vas)
- 18 L
- Force Factor (B*I)
- 7.6 Tm
- Efficiency 1 W / 1 m (SPL)
- 88 dB
- Cone Area (Sd)
- 216 cm²
- Moving Mass (Mms)
- 35 g
- Cone Material
- Paper
- Mechanical Resistance (Rms)
- 1.6 kg/s
- Voice Coil Diameter
- 37 mm
- Voice Coil Winding Height
- 16 mm
- Max Linear Excursion (Xmax)
- +/- 5 mm
- Model
- Model Type
- C
- Convertible, Coupe, Sedan, T-model
- E
- Convertible, Coupe, Sedan, T-model
- GLC
- SUV, SUV Coupe
