MATCH UP W8MB S4 3 SINGLE 200MM LHD UPGRADE SUBWOOFER

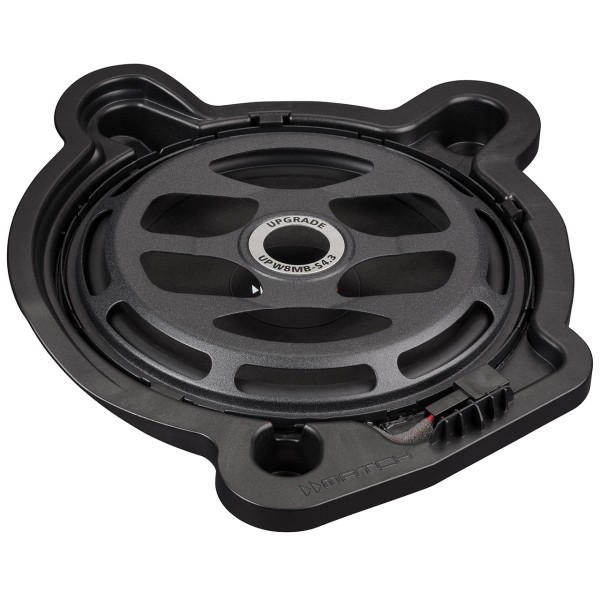

MATCH UP W8MB-S4.3 LHD Premium cars deserve premium sound – the basic speaker setup in Mercedes vehicles doesn't deliver deep, punchy bass. The UP W8MB-S4.3 system's heavy-duty 8” / 200 mm woofers fit perfectly into the original mounting positions in the bulkhead, providing impactful bass that brings music to life.
Overview
Product details
MATCH UP W8MB-S4.3 LHD Premium cars deserve premium sound – the basic speaker setup in Mercedes vehicles doesn't deliver deep, punchy bass. The UP W8MB-S4.3 system's heavy-duty 8” / 200 mm woofers fit perfectly into the original mounting positions in the bulkhead, providing impactful bass that brings music to life.
Read full product description

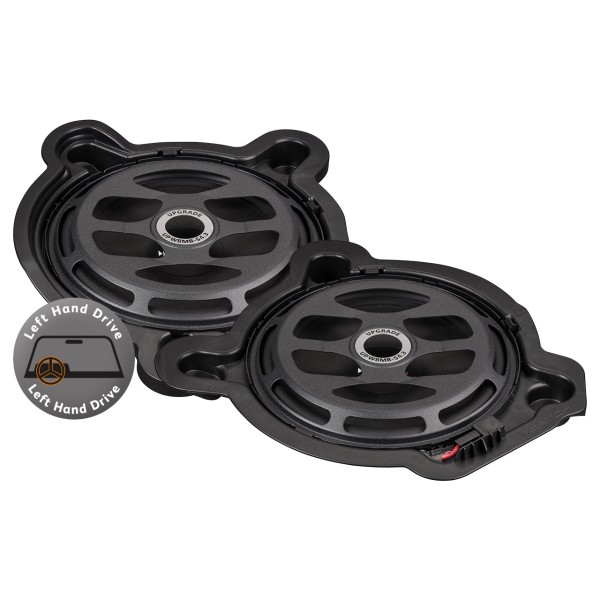

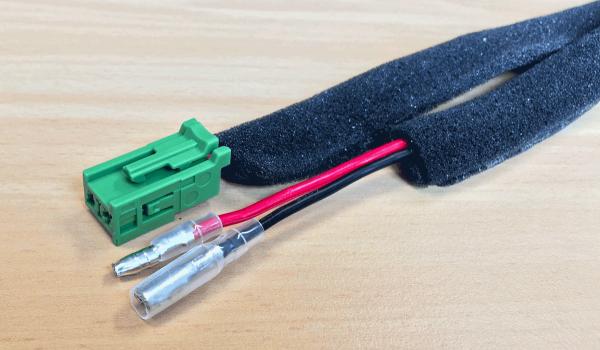

In combination with a DSP amplifier, these subwoofers reach their full dynamic potential. Features: 2 x 8" subwoofer with exclusively developed basket for Mercedes vehicles Mercedes-tuned subwoofer for highest sound quality Aperiodic damped speaker basket for deep and precise bass response Car-specific connectors for Mercedes vehicles for easy installation Perfectly combinable with MATCH UPGRADE components, e.g., DSP amplifier Left-hand drive version
Product context
Subwoofers products are easier to compare with the right specs.
Use the product name, SKU, category, brand, images, price and spec sections to compare this item against the rest of the catalogue. Product pages are designed to make online shopping easier before an order is placed.
Technical specs
Product spec sections
Old site attributes1 spec
- Amplifier impedance
- 4 Ohm
Technical specs21 specs
- Power RMS / Max.
- 100 / 200 Watts
- Impedance
- 1 x 4 Ω
- DC Resistance
- 3.1 Ω
- Frequency Response
- 25 - 250 Hz
- Resonance Frequency
- 45 Hz
- Mechanical Q Factor
- 1.11
- Electrical Q Factor
- 0.67
- Total Q Factor
- 0.42
- Compliance
- 333 µm/N
- Equivalent Air Volume
- 22 L
- Force Factor
- 7.0 Tm
- Sensitivity
- 91 dB @ 2.83V / 1m; 88 dB @ 1W / 1m
- Cone Area
- 216 cm²
- Moving Mass
- 37 g
- Cone Material
- Paper cone
- Mechanical Resistance
- 9.5 kg/s
- Voice Coil Diameter
- 37 mm
- Voice Coil Winding Height
- 16 mm
- Max. Linear Excursion
- +/- 5 mm
- Compatibility - Model
- C, Coupe, Sedan, T-model
- Compatibility - Model Year
- From 2021
