MATCH UP 8DSP

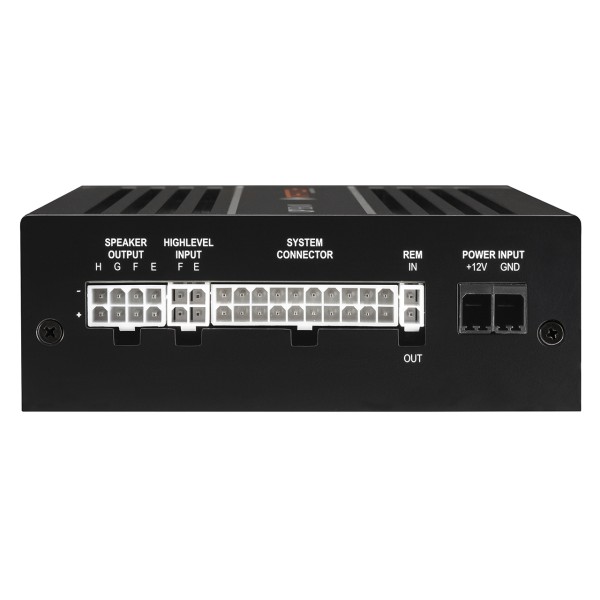

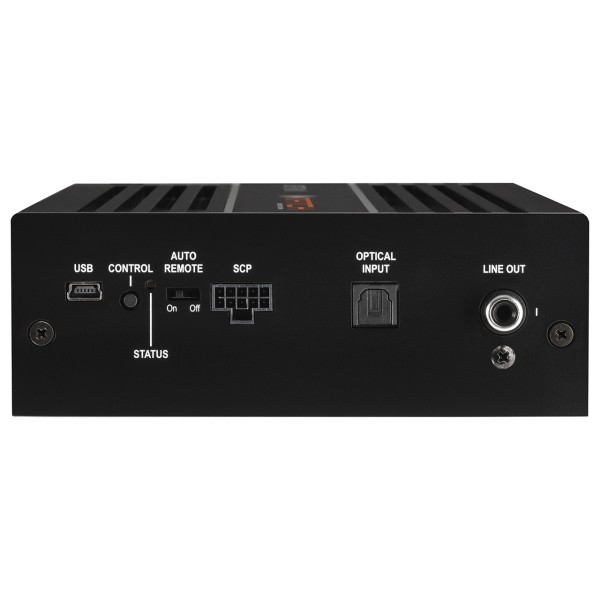

Seamless connectivity With its six high-level inputs, an optical digital input, the MATCH Extension Card slot and many intelligent technologies, such as the proprietary ADEP.3 circuit, the UP 8DSP is perfectly equipped for seamless adaptation to existing multi-channel sound systems. Furthermore, with a total of eight amplifier channels as well as the additional line output – in combination with the powerful 9-channel DSP – individual speaker configurations can also be realized. Two amplifier output channels deliver 160 Watts RMS into 2 Ohms – plenty enough for fuelling even large subwoofers. Virtual Channel Processing – this is how signal routing works today The optimal adaptation to existing multi-channel sound systems requires sensible management and configuration of the many DSP channels – so it was no question that the UP 8DSP is also equipped with Audiotec Fischer's innovative virtual channel processing. Especially when front, rear and center systems are split into multi-way systems, conventional routing concepts quickly reach their limits, both in terms of implementation and usability. The multi-stage "Virtual Channel Processing", in conjunction with the recognized user-friendly DSP PC-Tool software makes it easy to map even highly complex system configurations and to freely assign our proprietary FX sound features. Additionally, thanks to its generous number of channels in combination with the optional MEC ANALOG IN module the UP 8DSP is also a prime example for applications where 1 to 1 routing (IOR) makes sense. ACO – Advanced 32 Bit CoProcessor Plattform Of course, the UP 8DSP is equipped with our proprietary 32 Bit ACO platform, which doesn’t just take over all control tasks ultra-fast, but also handles a bunch of audio functions: fantastic sound effects such as Augmented Bass Processing or Real Center are implemented as well as a channel-separated Input EQ including Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios, which already include a sound setup by default. Compact dimensions Despite its wide feature set and beefy output power of 6 x 65 Watts at 4 Ohms plus 2 x 90 / 160 Watts at 4 / 2 Ohms, the UP 8DSP comes – as usual for a MATCH amplifier – in a very compact design, so that it can be installed even in confined spaces without any problems. DSP PC-Tool 5 feat. TuneEQ – Powerful features for the ultimate sound experience Of course, the MATCH UP 8DSP can be easily configured via our new, professional and exceptionally intuitive DSP PC-Tool 5. The familiar, numerous setting options leave nothing to be desired and guarantee an extremely precise sound adjustment even for complex system configurations. And thanks to the new, proprietary TuneEQ function for automated frequency response correction, you also save a lot of time when optimizing your sound. Features Ultra efficient 8-channel amplifier with 1-channel line output and 9-channel DSP Perfect for upgrading multi-channel factory sound systems Optional cable harnesses for easy integration into existing multi-channel factory sound systems Extremely powerful 64 Bit “fixed point” Audio DSP ACO – Advanced 32 Bit CoProcessor platform for extended feature set ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals Proprietary TuneEQ function for automated adjustment of the output equalizers SFX (DSP Sound Effects) – Augmented Bass Processing, RealCenter & Co. Smart 6-channel highlevel input with ADEP.3 circuit 1:1 IOR (Input-to-Output Routing) in combination with the optional MEC ANALOG IN module VCP (Virtual Channel Processing) allows even more flexible configuration for highly complex sound systems MATCH Extension Card slot (MEC) for system expansions like Bluetooth® HD Audio Streaming, High Resolution Audio Streaming via USB etc. Optical input in SPDIF format with sampling rate between 12 and 96 kHz Mono RCA output for the connection of an external amplifier e.g. subwoofer amplifier SCP (Smart Control Port) for optional accessory like DIRECTOR, CONDUCTOR & Co. Auto Remote switch Start-Stop capability down to 6 Volts supply voltage Compact design with low heat dissipation thanks to extraordinary efficiency Special Features Class GD technology Audiotec Fischer´s proprietary Class GD concept takes the efficiency of conventional Class D amps to the next level. By varying the internal supply voltage in several steps depending on the amplifier’s input signals, idle losses are significantly reduced and overall efficiency is close to maximum at any time. So heat dissipation is almost negligible, thus allowing smallest heat sinks and most compact form factors. ACO – Advanced 32 Bit CoProcessor The UP 8DSP incorporates an extraordinary powerful 32 Bit CoProcessor of the latest generation. This not only takes over all control tasks ultra-fast, but also the lightning-fast switching between up to ten possible sound setups. But ACO offers much more – besides a channel-separated Input EQ including Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios and fantastic sound effects like Augmented Bass Processing or RealCenter, there is now the revolutionary TuneEQ function for automated adjustment of the output equalizers. A further significant advantage is the integrated, native boot loader of the CoProcessor. It allows software upgrades of all components of the DSP in order to adjust the microcontroller-controlled ADEP.3 circuit for example at future modifications / changes in the diagnostic system of factory radios or if the device will be extended with additional interfaces. Smart highlevel input ADEP.3 Modern, factory-installed car radios incorporate sophisticated possibilities of diagnosing the connected speakers. In particular the latest generation of car radios are equipped with additional monitoring functions so that failure messages and loss of specific features (e.g. fader function) quite often appear if a common amplifier will be hooked up – but not with the UP 8DSP. The new ADEP.3 circuit (Advanced Diagnostics Error Protection, 3rd Generation) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily. Start-Stop capability The switched power supply of the MATCH UP 8DSP assures a constant internal supply voltage even if the battery’s voltage drops to 6 Volts during engine crank. If the supply voltage drops below 10.5 Volts for more than five seconds the amplifier goes to “Protect mode” (Status LED lights up red) in order to avoid any further discharge of the car’s battery. Automatic Digital Signal Detection The UP 8DSP allows signal-controlled switching between the analog inputs and the digital input. As soon as an input signal is detected on the Optical Input, the amplifier automatically switches to this input. This feature can be deactivated in the DSP PC-Tool software. Alternatively you can use an optional remote control for manual switching between analog and digital inputs. Power Save Mode The Power Save Mode is incorporated in the basic setup. It allows to significantly reduce the power consumption of the UP 8DSP and potentially connected amplifiers once there’s no input signal present for more than 60 seconds. Please note that in many up-to-date cars with “CAN” or any other internal bus structures it may happen that the radio remains “invisibly” turned on for up to 45 min. even after locking and leaving the car! Once the “Power Save Mode“ is active the remote output and therefore the connected amplifiers will be turned off. The MATCH UP 8DSP will reactivate the remote output within a second if a music signal is applied. It is possible to either modify the turn-off time of 60 sec. or completely deactivate the “Power Save Mode” via the DSP PC-Tool software.
