MATCH M 5.4DSP

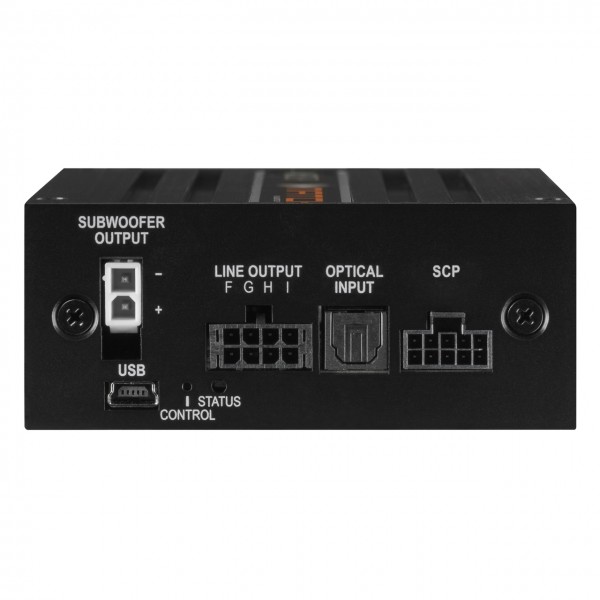

Ultra-compact installation In modern vehicles, space for sound upgrades is increasingly limited. The M 5.4DSP can be mounted in even the most difficult conditions, thanks to its minimal dimensions. The all-new Smart Control Port (SCP) offers a compact, locking connector compatible with Audiotec Fischer remote controls (e.g. CONDUCTOR, URC.3), making installation cleaner and simpler. Performance & Plug & Play on demand With two power modes, “HighPower” for max performance and “MidPower” for lower consumption, the M 5.4DSP is ideal for Plug & Play applications. Combined with MATCH’s pre-assembled adapter cables, installation is fast and non-destructive. Maximum flexibility This 64-bit DSP features nine channels and four configurable RCA outputs for adding amplifiers such as the MATCH M 2.1AMP. It’s perfect for building compact multi-channel systems with big performance. Virtual Channel Processing Audiotec Fischer's Virtual Channel Processing simplifies complex DSP configurations, making input mixing and channel routing more intuitive using DSP PC-Tool. You can assign FX sound features like RealCenter and Augmented Bass Processing with ease. ACO – Advanced 32 Bit CoProcessor The onboard ACO platform handles control tasks and ensures fast communication with DSP PC-Tool. It supports up to 10 sound setups, advanced sound features, and includes Input Signal Analyzer (ISA) for easier signal correction. Features Ultra-efficient 5-channel amplifier with 9-channel DSP and 4 line outputs Minimal dimensions for stealth installations HighPower and MidPower modes for flexible setups Plug & Play installation without external power cable in MidPower mode 64-bit fixed point audio DSP 32-bit ACO platform for advanced system and DSP control ISA and InputEQ for input signal analysis and compensation SFX sound features like Augmented Bass, RealCenter, StageXpander SPDIF optical input (12–96 kHz) Smart highlevel input with ADEP.3 and Auto Turn-On Virtual Channel Processing for flexible signal routing Auto Remote switch Start-Stop capable down to 6V Freely configurable 4-channel line output Subwoofer connection cable included SCP port for optional accessories like WIFI CONTROL or DIRECTOR Special Features Class GD Technology Reduces idle losses and optimizes efficiency by adapting internal voltage based on the input signal, enabling compact designs with minimal heat. ACO – Advanced CoProcessor A powerful 32-bit microcontroller enables faster setup switching and enhanced system control. Includes 10 setup memories and firmware upgrade capability. Start-Stop Capability Maintains stable operation even if vehicle voltage drops to 6V during engine crank. Two Power Modes Choose between HighPower for full output or MidPower for low power installations. Smart Highlevel Input ADEP.3 Avoids errors and maintains OE radio features by simulating speaker loads without unnecessary power draw. DSP Sound Features TuneEQ Automated frequency correction using one measurement per channel pair. It adjusts EQs for precise sound with minimal effort. RealCenter Creates a dynamic center signal based on stereo content, offering a broader, more immersive stage for driver and passenger. Augmented Bass Processing Combines two technologies: Dynamic Bass Enhancement: Adjusts subsonic filters and bass gain dynamically for deeper bass at low/medium volumes without overload. SubXpander: Adds subharmonic tones (50–100 Hz) for darker, deeper bass.
