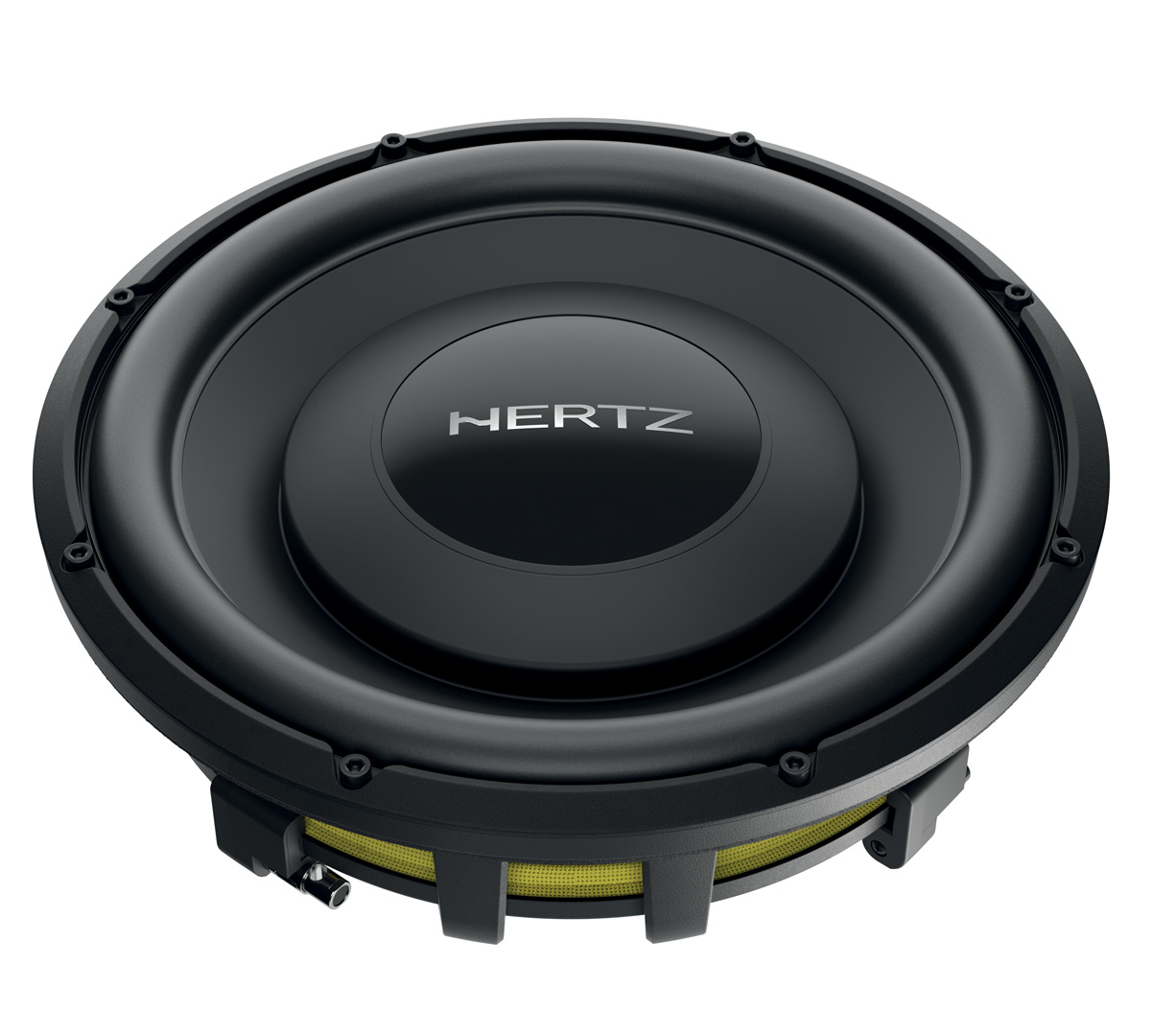

Hertz MPS 300 S2 12" Shallow Subwoofer
MPS 300 S2 shallow subwoofer has been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box. MPS 300 S2 is optimized to work in ultra-compact sealed boxes starting from only 22,7 Lt (0.8 Cf).
Overview
Product details
MPS 300 S2 shallow subwoofer has been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box. MPS 300 S2 is optimized to work in ultra-compact sealed boxes starting from only 22,7 Lt (0.8 Cf).
Read full product description

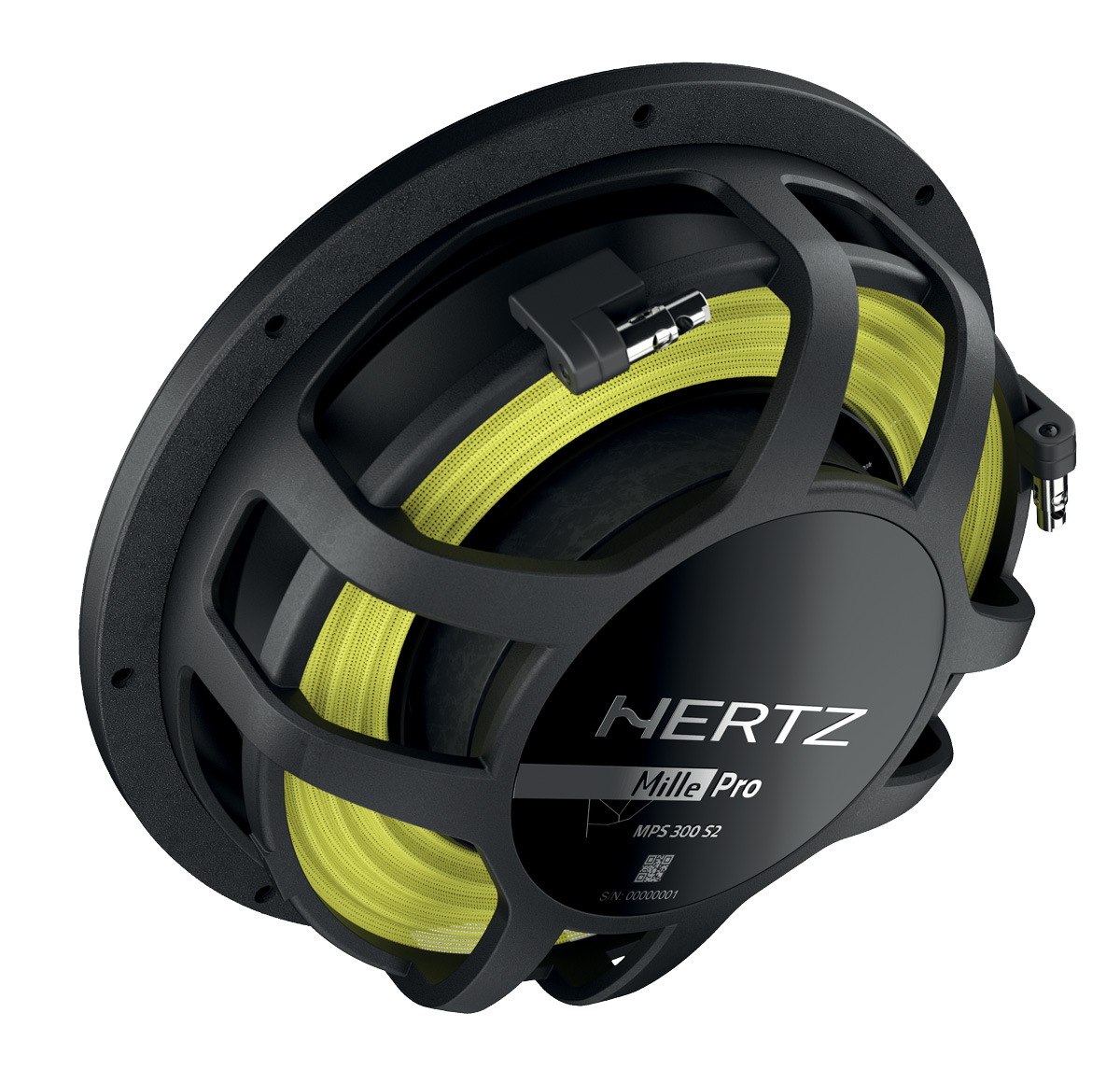

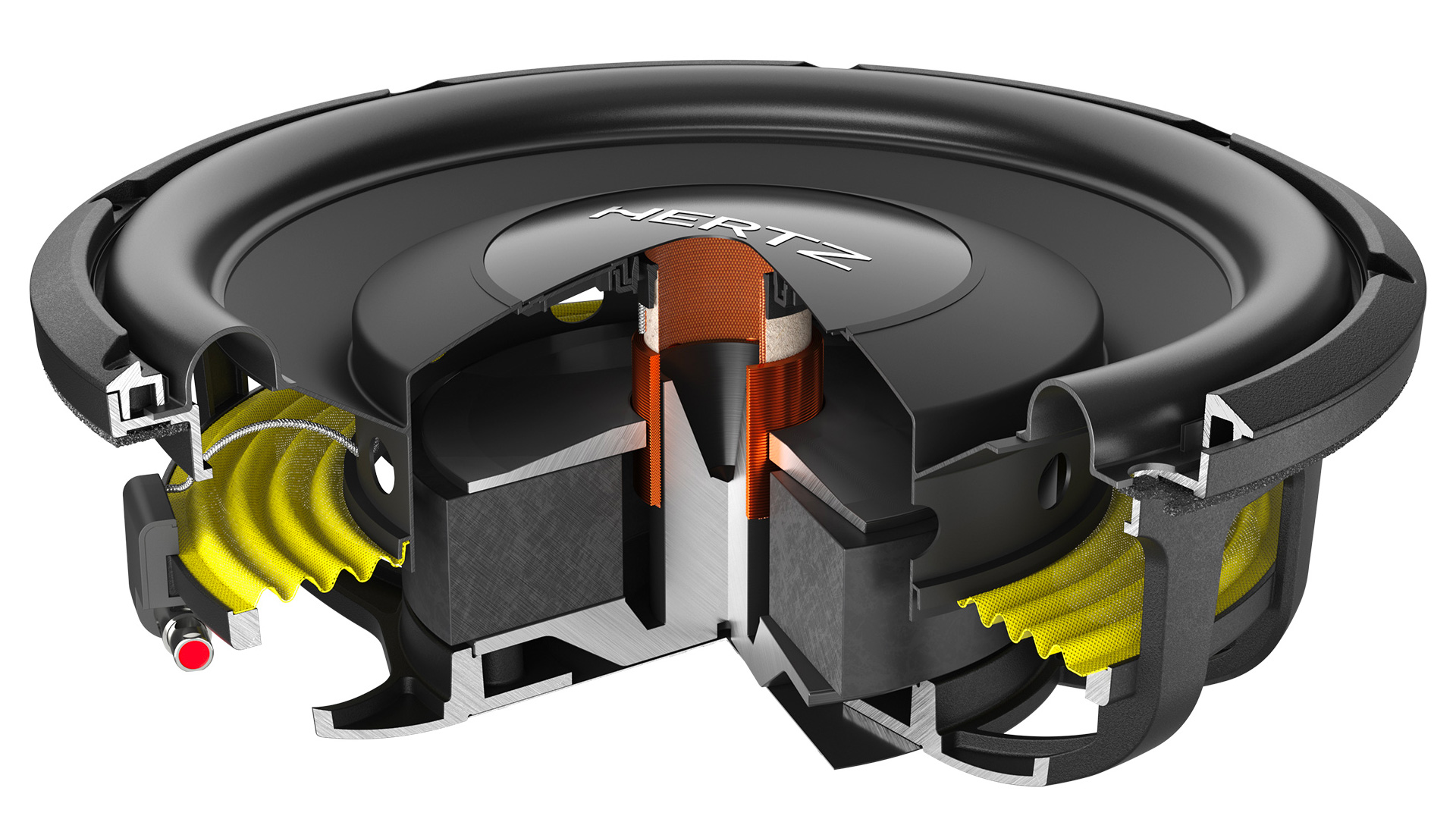

A typical example is a subwoofer enclosure under the rear bench of pickup trucks, where the space - and the height - are limited. MPS 300 S2 has a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design. This exceptional target has been achieved thanks to the ingenious suspension group design featuring a dedicated support structure for the spider and coil. This solution has allowed the movement of the magnetic group inwards, reducing the depth and at the same time maximizing cone linear excursion.
Product context
Subwoofers products are easier to compare with the right specs.
Use the product name, SKU, category, brand, images, price and spec sections to compare this item against the rest of the catalogue. Product pages are designed to make online shopping easier before an order is placed.
Technical specs
Product spec sections
Old site attributes5 specs
- Subwoofer size
- 12
- Subwoofer RMS
- 500
- Subwoofer type
- Shallow
- Subwoofer impedance
- 2
- Amplifier impedance
- 4 Ohm
Technical specs27 specs
- Size mm (in.)
- 300 (12)
- Power Handling - Continuous W
- 500
- Power Handling - Peak W
- 1000
- Impedance Ohm
- 2
- Depth mm (in.)
- 88 (3.46)
- Voice Coil Type
- single
- No Filter Component
- Subwoofers
- Voice Coil Ø
- 38 (1.5)
- Frequency Response Hz
- 25 - 400
- Magnet size D x d x h mm (in.)
- 156 x 60 x 36 (6.14 x 2.36 x 1.42)
- Weight of one component kg (lb.)
- 6,64 (14.64)
- Magnet
- High density flux ferrite
- Cone
- Polypropylene
- Xmech mm (in.)
- 20 (0.79)
- D mm
- 262,59
- Xmax mm
- 16,80
- Re Ohm
- 1,9
- Fs Hz
- 24
- Le mH
- 1,48
- Vas I
- 64,9
- Mms g
- 295
- Cms mm/N
- 0,16
- BL T*m
- 12,3
- Qts
- 0,51
- Qes
- 0,55
- Qms
- 7,5
- Spl dB
- 84,5
