Hertz / Tweeters

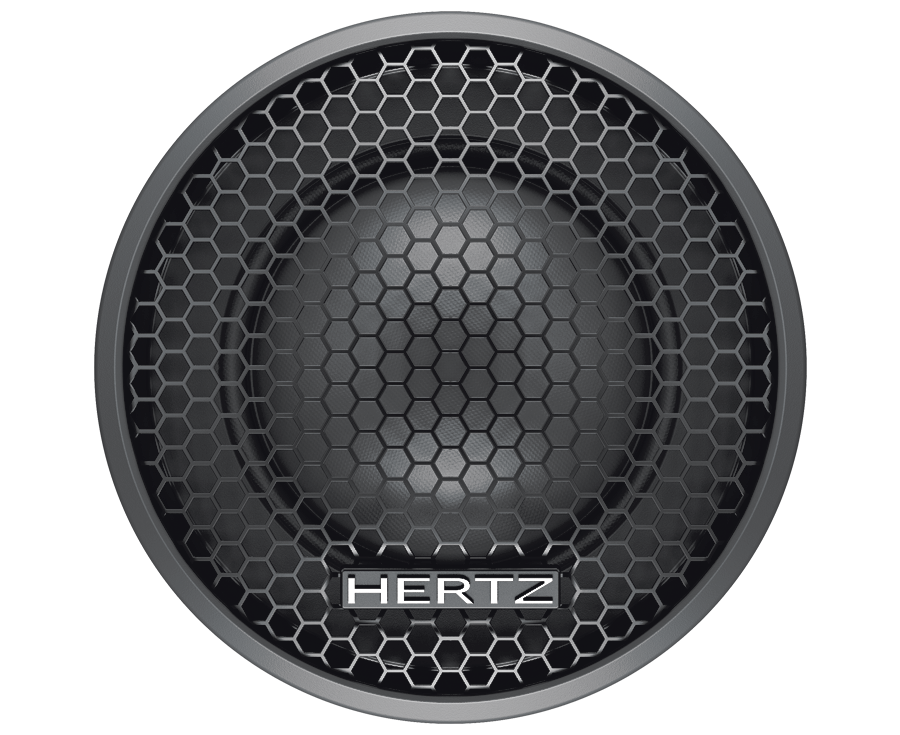

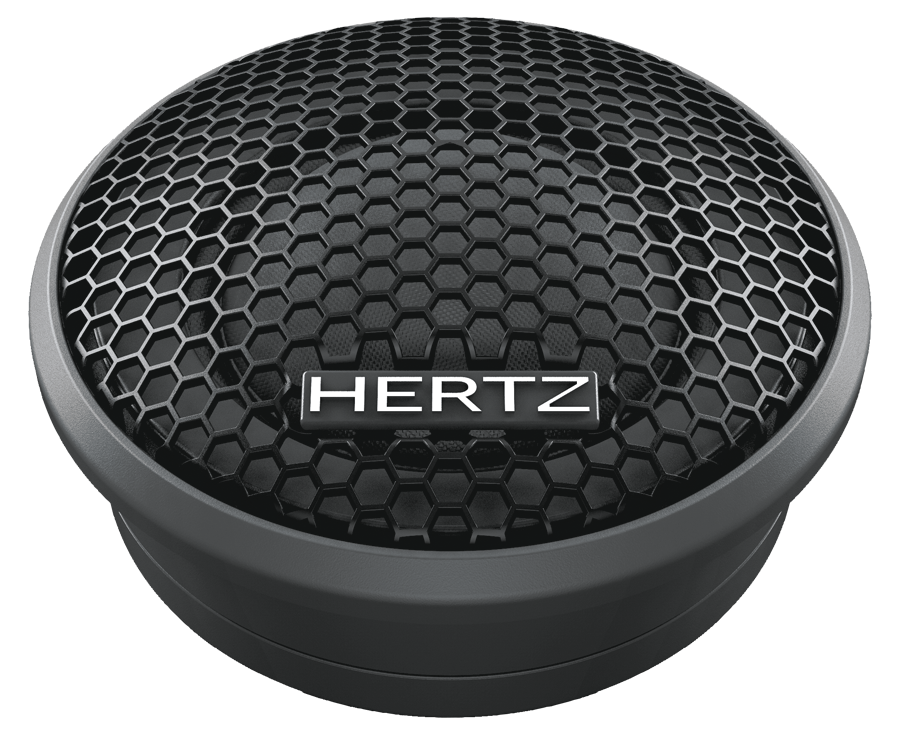

Hertz MP 25.3 180w Tweeter
The MP 25.3 car audio tweeters, featuring Tetolon dome and 25 mm voice coil, provides a very wide, linear frequency response. Thanks to its “Center Tuning Duct”, positioned in the center of the powerful Neodymium magnetic circuit, exchange of air between dome and rear load chamber is ensured, fine-tuning the acoustics to perfection.
Overview
Product details
The MP 25.3 car audio tweeters, featuring Tetolon dome and 25 mm voice coil, provides a very wide, linear frequency response. Thanks to its “Center Tuning Duct”, positioned in the center of the powerful Neodymium magnetic circuit, exchange of air between dome and rear load chamber is ensured, fine-tuning the acoustics to perfection.
Read full product description
The resulting very low resonance frequency is also functional for the woofer crossover point, elevating the sound stage.
Product context
Tweeters products are easier to compare with the right specs.
Use the product name, SKU, category, brand, images, price and spec sections to compare this item against the rest of the catalogue. Product pages are designed to make online shopping easier before an order is placed.
Technical specs
Product spec sections
Old site attributes1 spec
- Amplifier impedance
- 4 Ohm
Technical specs22 specs
- Component
- Tweeter
- Size mm (in.)
- 29 (1.14)
- Power Handling - Peak W
- 120
- Power Handling - Peak Note
- (Hi-Pass filtered @ 2,5kHz - 12 dB Oct.)
- Impedance Ohm
- 4
- Voice Coil Ø
- 25 (1)
- Frequency Response Hz
- 1.4k ÷ 22.5k
- Magnet size D x d x h mm (in.)
- 24.5 x 6 x 3.5 (0.96 x 0.24 x 0.14)
- Weight of one speaker kg (lb.)
- 0.07 (0.14)
- Magnet
- Neodymium
- Dome
- Tetolon
- D mm
- 29
- Re Ohm
- 3,9
- Fs Hz
- 1200
- Le mH
- 0,02
- Mms g
- 0,17
- Cms mm/N
- 0,1
- BL T*m
- 1,6
- Qts
- 0,55
- Qes
- 1,98
- Qms
- 0,57
- Spl dB
- 91
