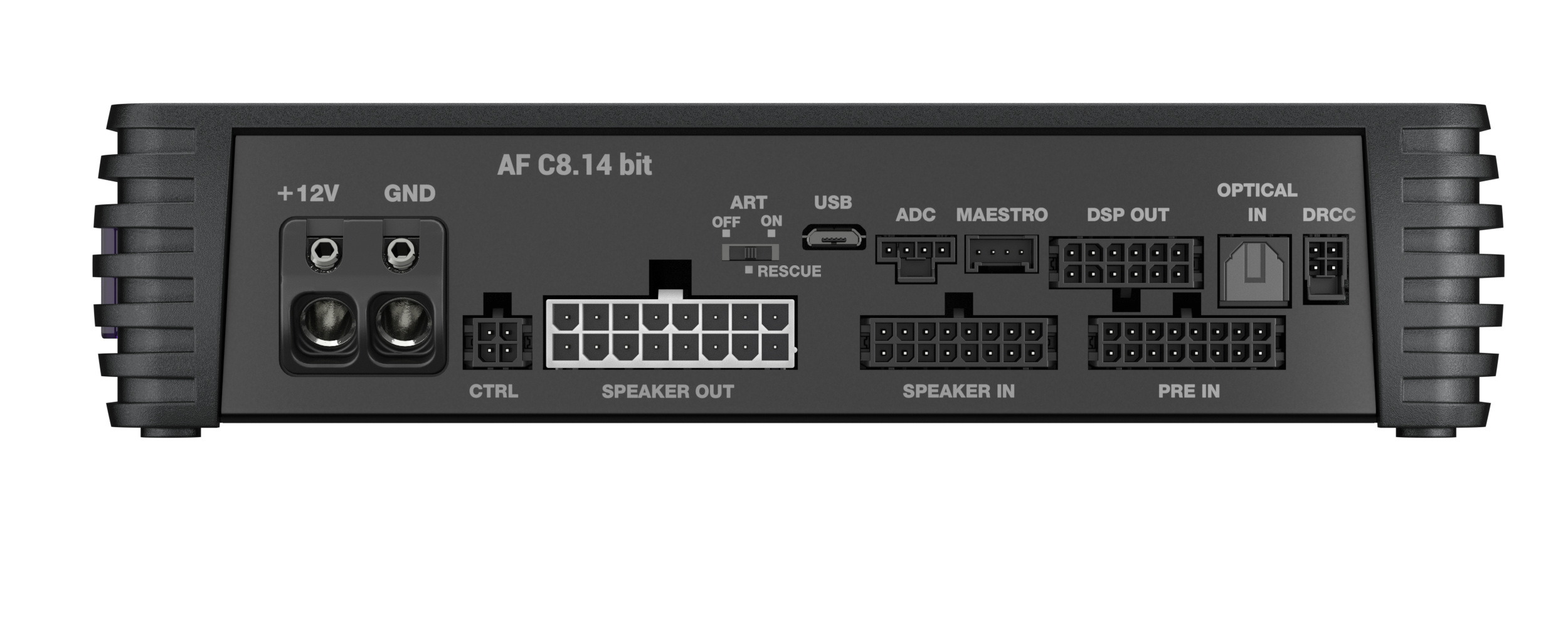

Audison AF C8.14 bit DSP Amplifier
AF C8.14 bit boasts eight high-fidelity amplified channels 65W x 8 @4Ω*, 100W x 8 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!
Overview
Product details
AF C8.14 bit boasts eight high-fidelity amplified channels 65W x 8 @4Ω*, 100W x 8 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!
Read full product description
This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 4 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
Product context
Amplifiers products are easier to compare with the right specs.
Use the product name, SKU, category, brand, images, price and spec sections to compare this item against the rest of the catalogue. Product pages are designed to make online shopping easier before an order is placed.
Technical specs
Product spec sections
Old site attributes4 specs
- Amplifier channels
- 8
- Amplifier RMS power output
- 100
- Amplifier impedance
- 4 Ohm
- Amplifier class
- Class D
Technical specs47 specs
- Channels
- 8
- Class
- D-Class
- Power supply voltage / fuse
- 11 ÷ 15 VDC / 1 x 35A
- Operating power supply voltage
- 6.5 ÷ 17.5 VDC
- Idling current
- 1.3 A
- Standby Current Draw
- 1 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power
- 34 A
- Remote IN
- 4 ÷ 15 VDC (1 mA)
- Remote OUT
- 6.5 ÷ 15 VDC (150 mA)
- ART - Automatic Remote Turn on/off from OUTPUT BTL speakers
- 1.5 VDC
- Efficiency Rated Power
- 81%
- Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power
- 0.05%
- Bandwidth @ -1.5 dB
- 10 Hz ÷ 42 kHz
- Damping factor @ 1 kHz, 4Ω, 2 VRMS
- 85
- S/N ratio (A weighted @ 1 V Input) Master Input
- 98.5 dBA
- S/N ratio (A weighted @ 1 V Input) Optical Input
- 105
- Total Power RMS
- 800 W
- Minimum load impedance
- 2Ω
- Output Continuous Power (RMS) @14.4 VDC, 1% THD
- 8 Ch @ 4Ω: 65 W x 8 8 Ch @ 2Ω: 100 W x 8 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 200 W x 4
- Adjustable Crossover
- Yes
- Output power @ 4Ω, 1% THD+N, 14.4 V
- 55 W x 8
- SN ratio (ref. 1W output)
- 80 dB
- Pre-In Inputs
- 0.6 ÷ 6 VRMS (15 kΩ Imp.)
- Digital Input
- Yes
- Pre Outputs
- 6
- Hi Level Inputs
- 8
- Low Level Inputs
- 8
- Speaker-In Inputs
- 2.2 ÷ 22 VRMS (5 Ω Imp.)
- Digital IN
- 1 x Optical S/PDIF; Max 192kHz/24bit 1 x Optical/Coaxial S/PDIF; Max 96kHz/24 bit with optional F2O card
- Digital Signal Processor
- Audio DSP Converter: Analog Devices ADAU1467 automotive qualified audio processor processing @ 96 kHz. Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz)
- Filter type
- Full / High-Pass / Low-Pass / Band-Pass
- Filter mode and slope
- Linkwitz-Riley @ 12/24/36/48 dB/Oct. Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct. Bessel @ 6/12/18/24/30/36/42/48 dB/Oct. Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct. QLP @ 6 dB/Oct.
- Crossover frequency
- 20 Hz ÷ 20 kHz
- Phase control
- 0° / 180°, All-Pass filters
- Analog Input Equalizer (20 ÷ 20k Hz)
- 12 Biquad + Delay
- Output Equalizer
- Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
- Time Alignment Distance
- 0 ÷ 510 cm / 0 ÷ 200.8 inches
- Time Alignment Delay
- 0 ÷ 15 ms
- Input Output Real Time Audio Monitor
- RTA
- DRC Port
- Input for DRC AC remote control (Optional)
- ADC Port
- Manage other Audison devices that support this standard
- 1 Wire
- Customizable functions (+12 V activated)
- 2 Wire
- Customizable functions (+12 V activated)
- PC connections
- Micro USB 1.1 / 2.0 / 3.0 Compatible
- Software/PC requirements
- Windows 10, Windows 11
- Video Resolution with screen resize
- (min. res. 1024 x 768)
- Ambient operating temperature range
- 0 °C to 55 °C (32 °F to 131 °F)
