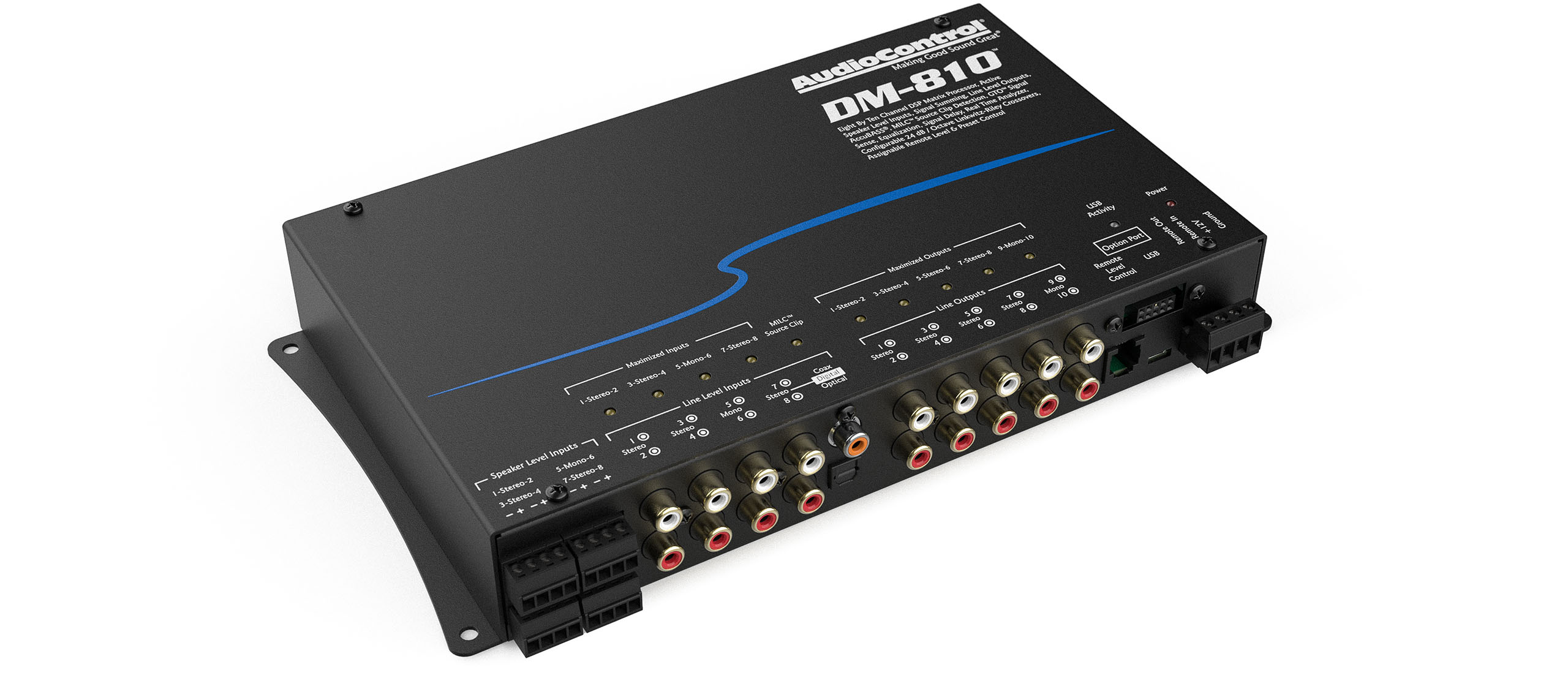

AudioControl DM 810 Eight by Ten Channel Matrix DSP

The powerful DM-810 processor allows users to truly optimize the performance of their audio system, whether using a factory or aftermarket source, and to achieve the goal of “Making Good Sound Great”. These highly versatile Digital Signal Processors are equipped with active speaker level inputs, line-level and digital audio inputs, providing up to 10 channels of output. AudioControl’s DM Smart DSP app (free download) contains the full power of AudioControl processing through a flexible interface packed with features in a simple layout. Configure signal summing, 30 bands of equalization, signal time-alignment, input delay and phase correction, plus proprietary features like AccuBASS®, GTOTM Signal Sense, and MILCTM, as well as integrated input and output RTA’s. The built-in Option Port on the DM-810 is the future of car audio and allows hi-res streaming directly into the DSP. It also opens future proprietary connections for additional inputs, controllers, and interface solutions. Designed to be the ultimate in sound quality and enhanced audio performance, the DM-810 sets a new standard for car audio systems. Features Input and Output RTA for precise and informed tuning GTOTM Signal Sensing MILCTM Clip Detection AccuBASS® Signal Summing Signal Delay 12 and 24 dB/octave crossovers 30 band equalizer Optional ACR-3 remote for preset recall and level control Optional AC-BT24 Bluetooth Streamer/Programmer DM Smart DSP app available for Mac/PC MILCTM The DM-810 features AudioControl’s MILCTM (Maximum Input Level Control) patent-pending source clip detection circuit. MILCTM calculates when the waveform of an incoming audio signal is clipping, and if it is, the LED fulfills its prime objective by aiding in precise level matching control. Option Port The built-in Option Port allows hi-res streaming and DSP programming directly into the DSP using the AC-BT24 Bluetooth Streamer/Programmer. It also opens future proprietary connections for additional inputs, controllers, and interface solutions. DM Smart DSP Connect your laptop to the DM-810 using AudioControl’s DM Smart DSP app, a fully featured Matrix DSP Interface designed to give instant and clear control over every aspect of the processor. Route any input to any output, adjust gain, delay, and polarity, then precisely tune the DM-810 using a 30-band EQ. High-pass, low-pass, and band-pass can be set up for any output using 12 or 24 dB/octave Linkwitz-Riley crossovers. For OEM integration, take advantage of the input and output RTAs, available for every input and output, to easily identify and sum factory speaker signals. With a clear GUI and intuitive workflow, the Smart User Interface removes guesswork when tuning your system to exact specifications.
