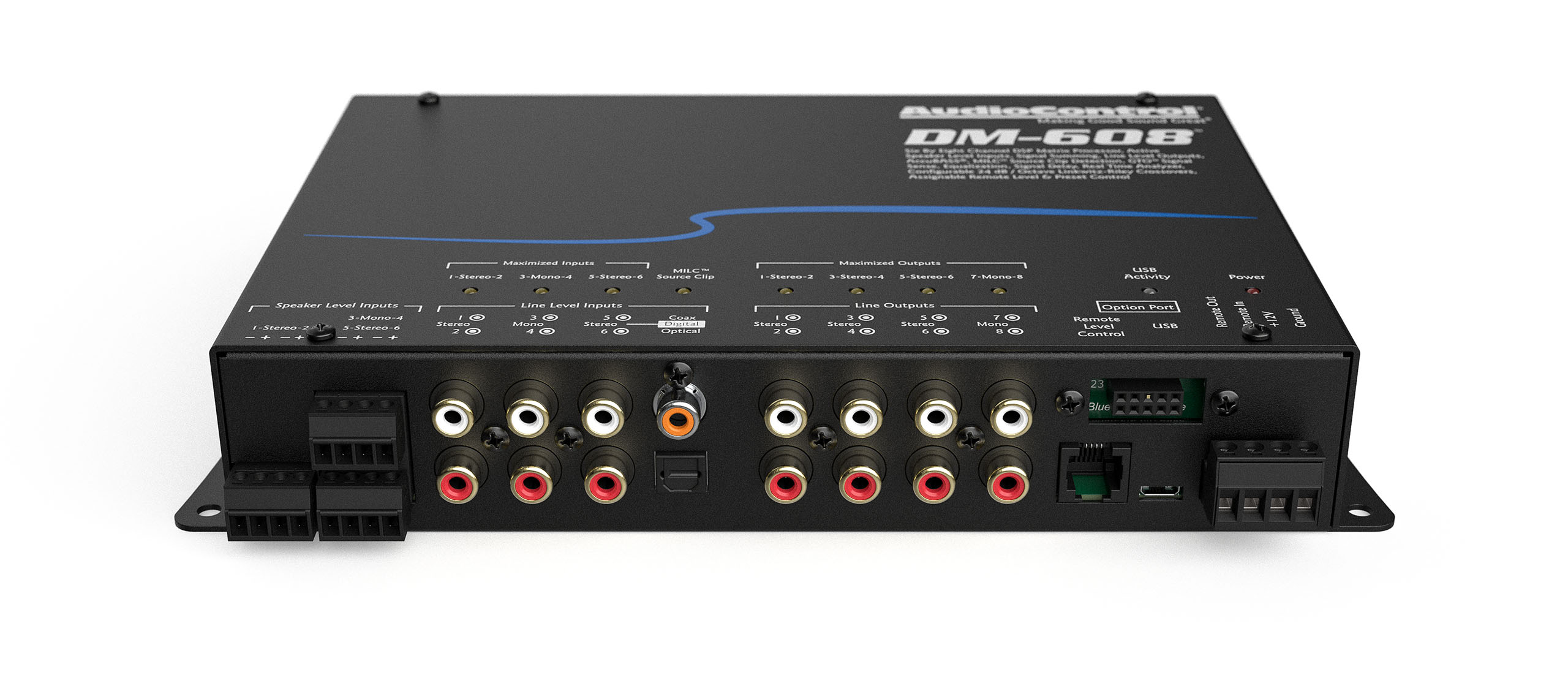

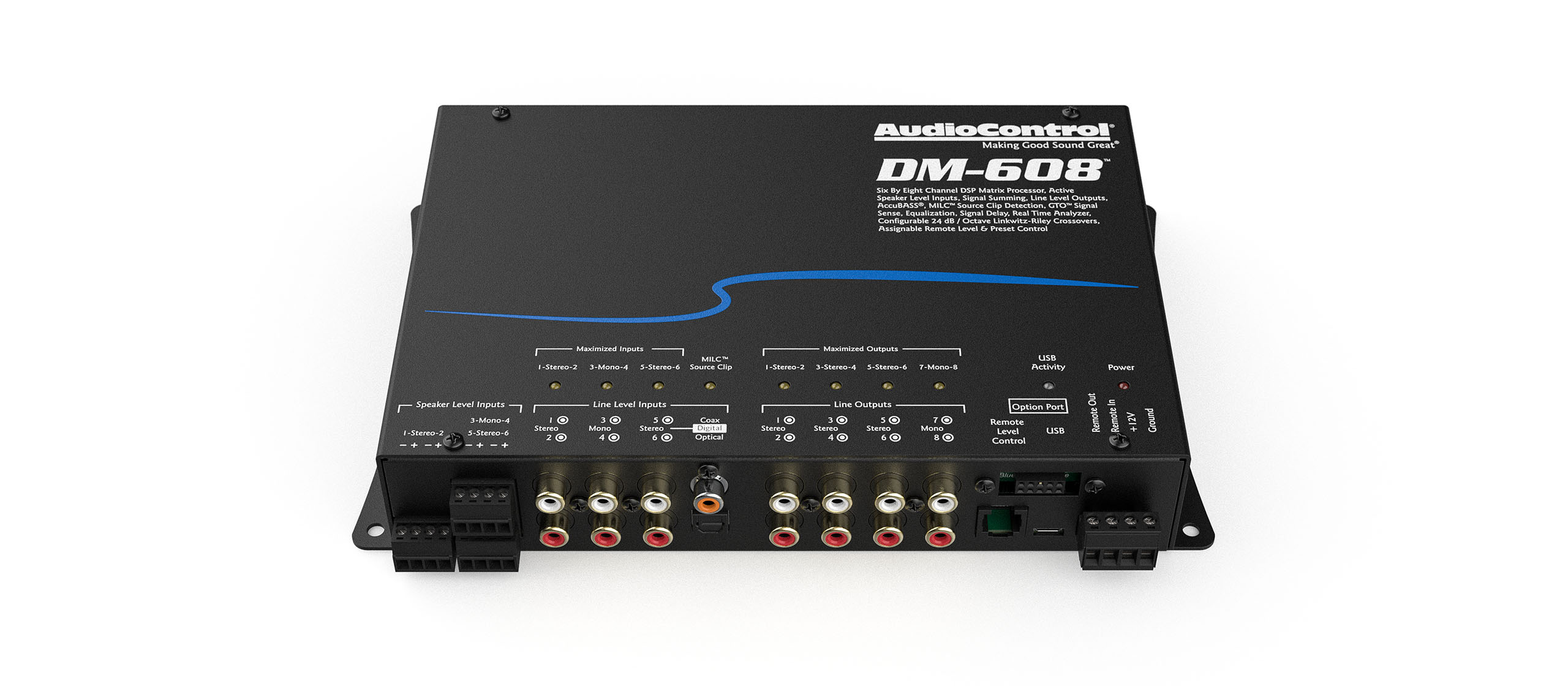

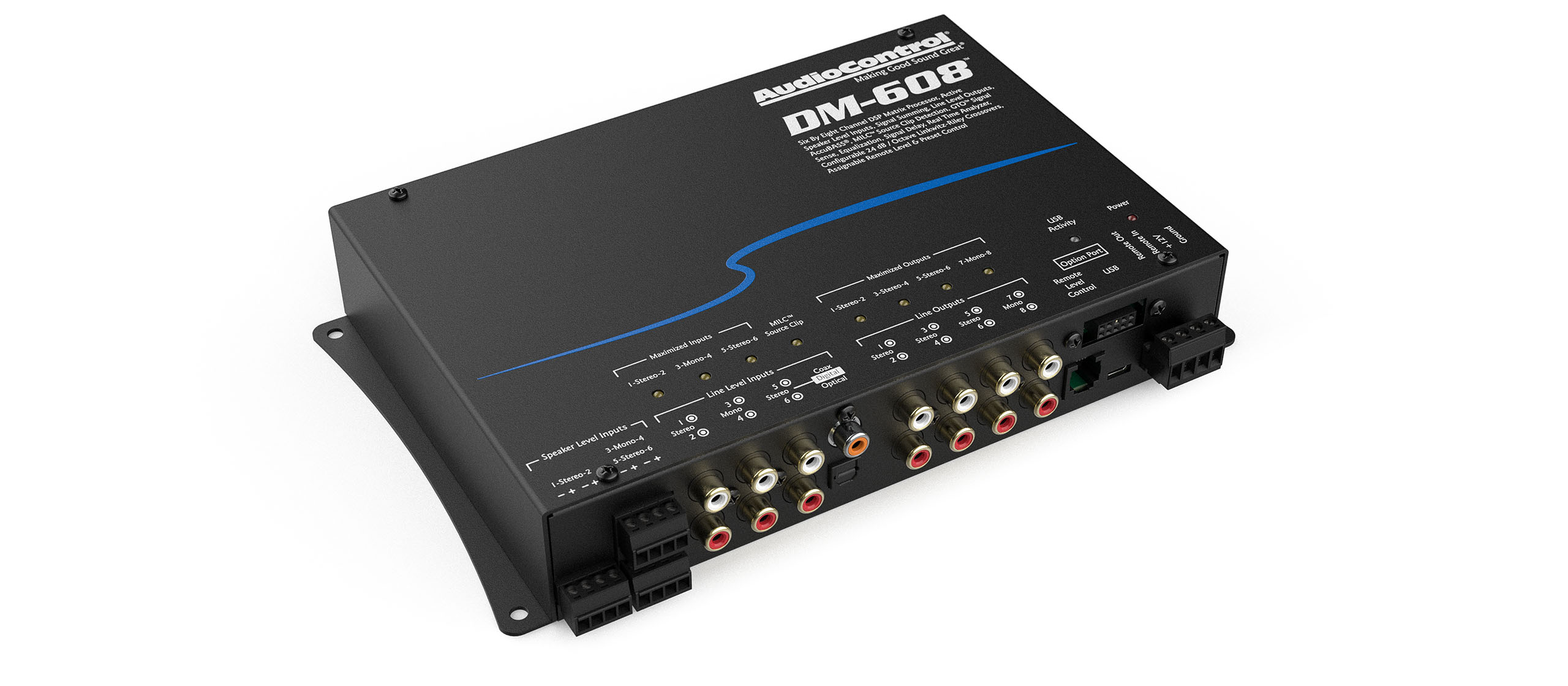

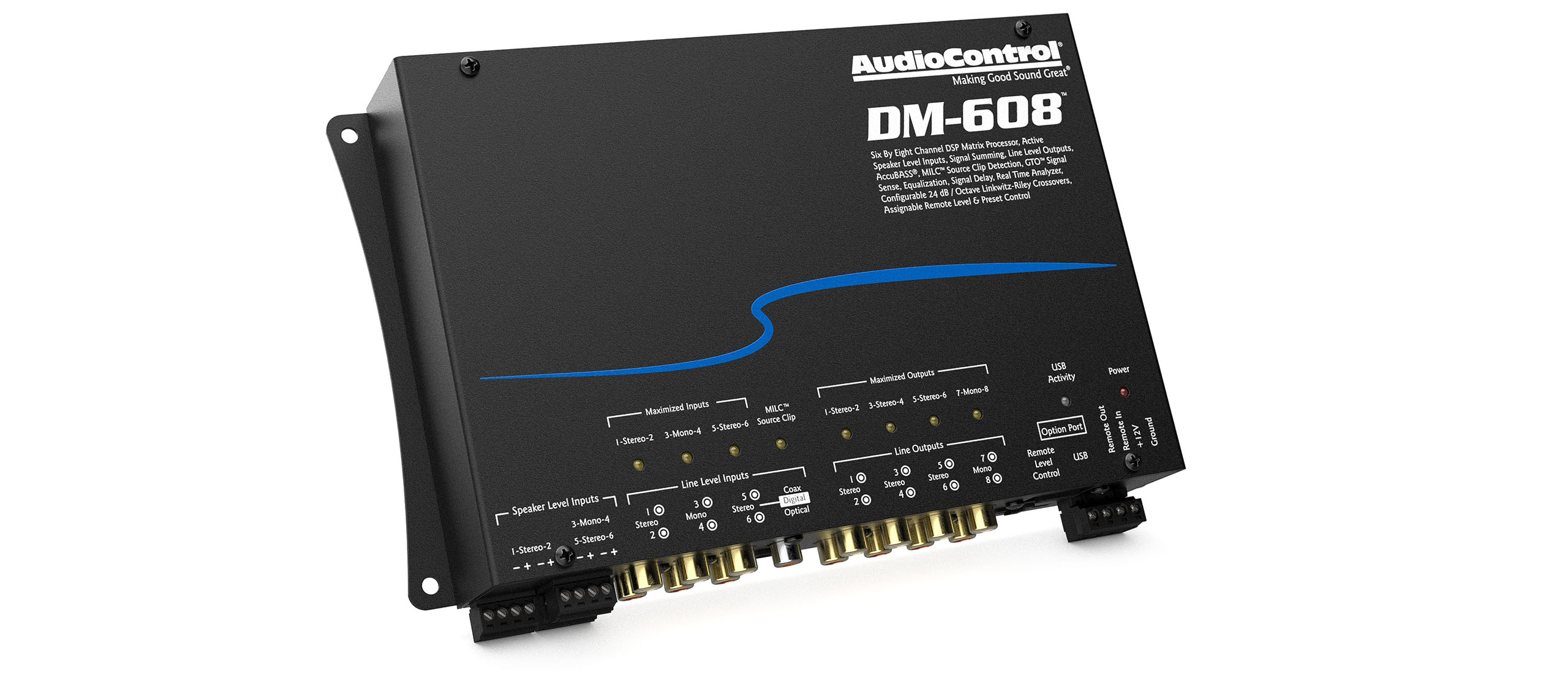

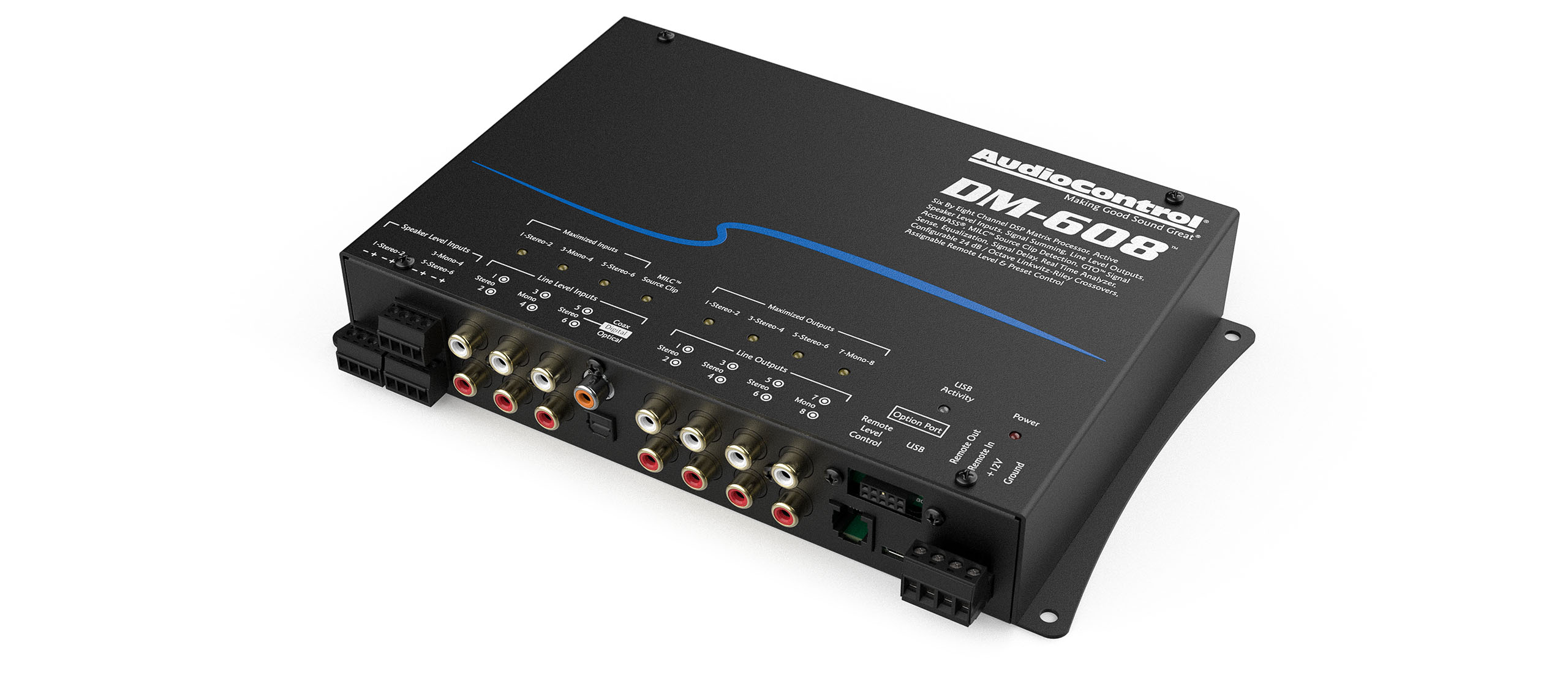

AudioControl DM 608 Six by Eight Channel Matrix DSP

These versatile Digital Signal Processors feature active speaker level inputs, line-level, and digital audio inputs, providing up to 8 channels of output. AudioControl’s “smart user” interface offers flexible PC control with features like signal summing, 30-band equalization, signal time-alignment, input delay, phase correction, and proprietary features like AccuBASS®, GTOTM Signal Sense, and MILCTM, as well as integrated input and output RTA’s. The built-in Option Port allows hi-res streaming directly into the DSP and opens future proprietary connections for additional inputs, controllers, and interface solutions. Features Input and Output RTA for precise and informed tuning GTOTM Signal Sensing MILCTM Clip Detection AccuBASS® Signal Summing Signal Delay 12 and 24 dB/octave crossovers 30 band equalizer Optional ACR-3 remote for preset recall and level control Optional AC-BT24 Bluetooth Streamer/Programmer DM Smart DSP app available for Mac/PC MILCTM The DM-608 features AudioControl’s MILCTM (Maximum Input Level Control) patent-pending source clip detection circuit. It calculates when an incoming audio signal is clipping, and the LED indicates this, aiding precise level matching control. Option Port The built-in Option Port allows hi-res streaming and DSP programming directly into the DSP using the AC-BT24 Bluetooth Streamer/Programmer and enables future proprietary connections for additional inputs and controllers. DM Smart DSP Connect your laptop using the DM Smart DSP app, a fully featured Matrix DSP Interface that provides control over every aspect of the processor. Route any input to any output, adjust gain, delay, and polarity, then precisely tune the DM-608 using a 30-band EQ. High-pass, low-pass, and band-pass can be configured for any output using 12 or 24 dB/octave Linkwitz-Riley crossovers. For OEM integration, input and output RTAs allow easy identification and summing of factory speaker signals. The clear GUI and intuitive workflow remove guesswork when tuning your system to exact specifications.
