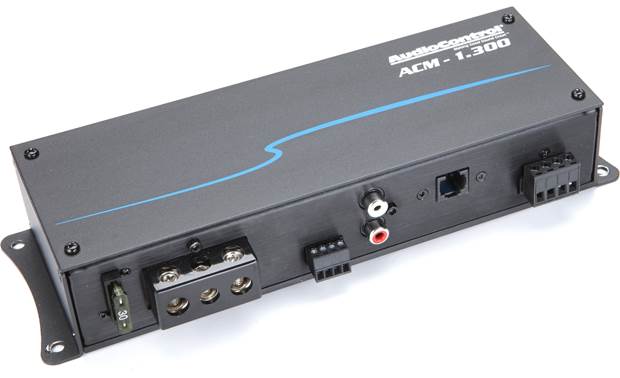

AudioControl ACM 1 300 Amplifier

options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting.\n\n\n\n \n\n \n\n \n\n\n\nSpecifications\n\n\n\ninputs\n\n\n\nPreamp Inputs: 2 Balanced\n\n\n\nPreamp Input Voltage Range: 500 mV – 6 Vrms\n\n\n\nSpeaker Level Inputs: 2\n\n\n\nSpeaker Level Input Voltage Range: 3 V – 40 Vrms\n\n\n\noutputs\n\n\n\nRated Continuous (RMS) Power at 14.4V:\n\n\n\n4 ? – 175 W RMS\n\n\n\n2 ? – 300 W RMS\n\n\n\nperformance\n\n\n\nFrequency Response: 10 Hz – 22 kHz\n\n\n\nSignal to Noise: 102 dBA, Ref 175 W @ 4 Ohm\n\n\n\nTHD+N: < 0.01%\n\n\n\nPower / Ground Wire Gauge: 10 to 4 AWG wire\n\n\n\nFuse Rating: 1 x 30 A\n\n\n\nCrossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass\n\n\n\nPFM Subsonic Filter: 24 Hz\n\n\n\nweights & dimensions\n\n\n\nDimensions: 9.4"W x 3.0"D x 1.75"H\n\n\n\nWeight: 2.1 lbs. (0.95 kg)\n\n\n\n
